Manage Universal Links in StreamNative Cloud

You can monitor and manage your Universal Linking jobs in the StreamNative Cloud Console.

View All Universal Linking Jobs

1. Navigate to the Organization Dashboard.
2. Click Unilink in the left navigation pane to access the UniLink page.

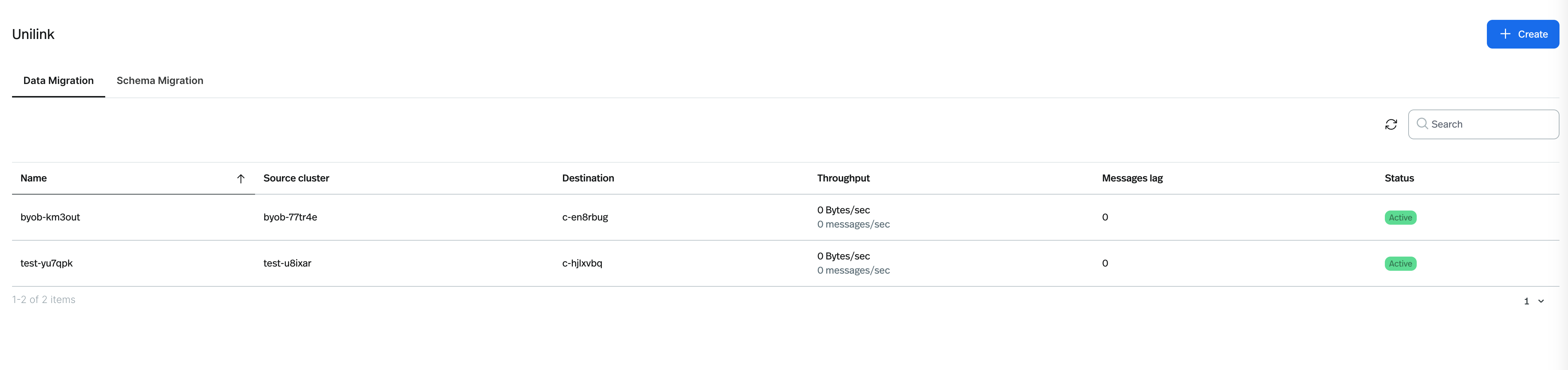

3. View all Universal Linking jobs by selecting either the Data Migration or Schema Migration tab.

For data replication jobs, you can see the following information:

• Job Name: The name of the Universal Linking job, with a unique random suffix.
• Source Cluster: The source cluster, also with a unique random suffix.
• Destination Cluster: The destination cluster.
• Throughput: The total bytes per second and total messages per second of the replication.
• Message Lag: The total message lag of the replication, periodically checked by UniLink.
• Status: The current status of the Universal Linking job.

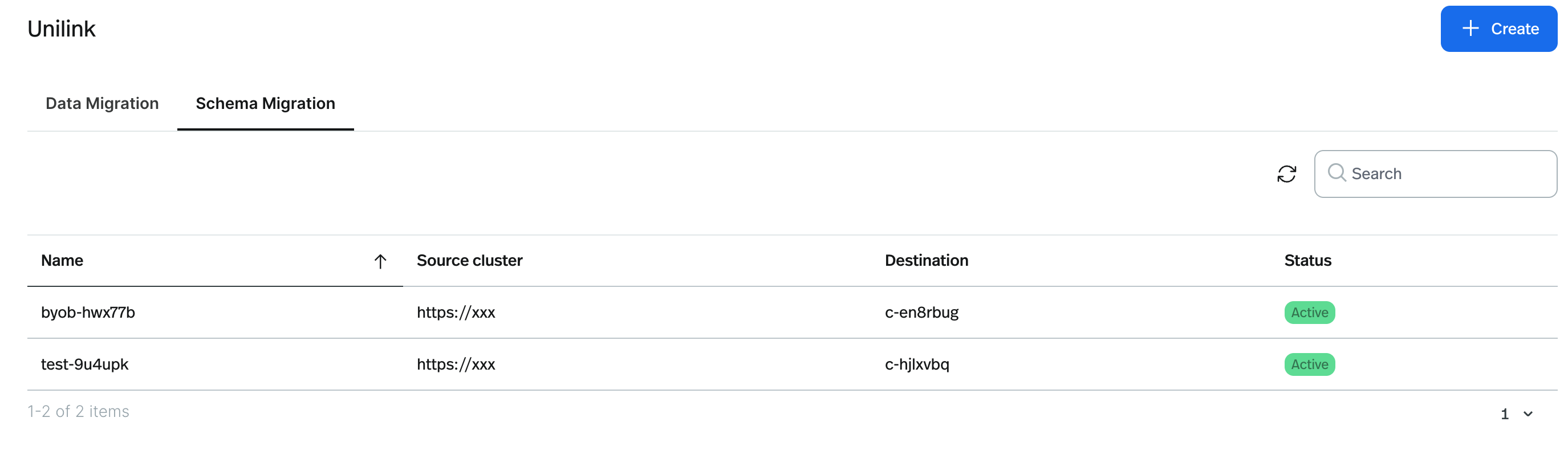

For schema migration jobs, the following details are available:

• Job Name: The name of the Schema Replication job, with a unique random suffix.
• Source Cluster: A link to the source cluster schema registry.
• Destination: A link to the destination cluster schema registry.
• Status: The current status of the Schema Replication job. s

View Details of a Universal Linking Job

1. Click the Job Name of the Universal Linking job you wish to view.
2. Review the job details, including all configurations. For Data Replication jobs, monitor the progress of all topics, including throughput and message lag.

Edit a Universal Linking Job

1. Click the three dots on the right side of the job you wish to edit.
2. Select Edit to modify the job configurations. This process mirrors the steps for creating a new job.
   • For Data Replication jobs, you can edit the source cluster, source cluster secrets, topic replication, and consumer group replication. The job name and destination cluster cannot be changed.
   • For Schema Replication jobs, you can edit the source cluster, destination cluster, and schema replication settings. The job name and destination cluster cannot be changed.

Delete a Universal Linking Job

1. Click the three dots on the right side of the job you wish to delete.
2. Select Delete to remove the Universal Linking job.
