Manage Dedicated Instances on StreamNative Cloud

In the UI, you will create a Dedicated instance and a cluster within the instance.

1. Navigate to the Organization Dashboard.

2. Click Instances on the left navigation pane to go to the Instances page.

3. Click + New Instance button to start the instance creation process.

4. On the Choose the deployment type for your instance page, click Deploy Dedicated to start the instance creation process.

5. On the Instance Configuration page, enter the Instance Name and select the Cloud Provider.

   Item	Description
   Instance Name	Enter a name for the instance. An instance name starts with a lowercase letter, contains any combination of lowercase letters (a-z), numbers (0-9), and hyphens (-), and must be 4-40 characters.
   Cloud Provider	Select the cloud provider. Currently, Google Cloud is available.

6. Click Cluster Location to start the cluster creation process.

7. On the Cluster Location page, enter the Cluster Name, select the Location from the dropdown list, and select the Availability Zone (AZ), then click Cluster Operation.

   Item	Description
   Cluster Name	Enter a name for the cluster. A cluster name starts with a lowercase letter, contains any combination of lowercase letters (a-z), numbers (0-9), and hyphens (-), and must be 4-10 characters.
   Location	Select the location from the dropdown list. The location represents the available regions in the designated cloud provider.
   AZ	Select the availability zone from the dropdown list: Single AZ or Multi AZ.

8. On the Cluster Operation page:

   1. Select the Release Channel: LTS or Rapid.

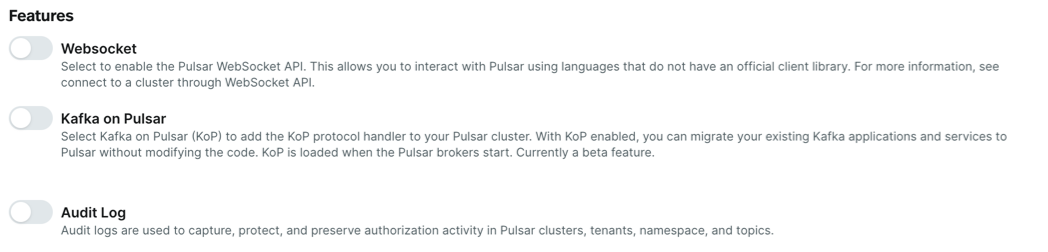

   2. (Optional) Enable or disable the Features you want on your cluster. You can enable or disable these features at any time by editing your cluster after it has been created.



   3. (Optional) Expand the Add optional custom configurations section to specify optional custom configuration parameters.

   4. Click Cluster Size.

9. On the Cluster Size page:

   • Use the slider to adjust the throughput according to your needs.
   • In the Advanced section, you can manually configure the number of brokers, bookies, and their corresponding resources.

   The estimated Monthly base cost for your cluster configuration is displayed in the right navigation pane.

10. Click Finish to start the cluster creation process.

The cluster page appears, showing the cluster creation process. Depending on the chosen cloud provider and other settings, it might take 10-15 minutes to provision a dedicated cluster. Once the cluster is ready, the page will show Cluster Provisioned successfully and you can click Go To The Dashboard to access the Cluster Dashboard page.

To view instances created for an organization, follow these steps.

1. In the upper-right corner of the StreamNative Cloud Console, click your Profile and select Organizations.

2. Click the name of the organization you want to check.

3. Select Instances from the left navigation pane.

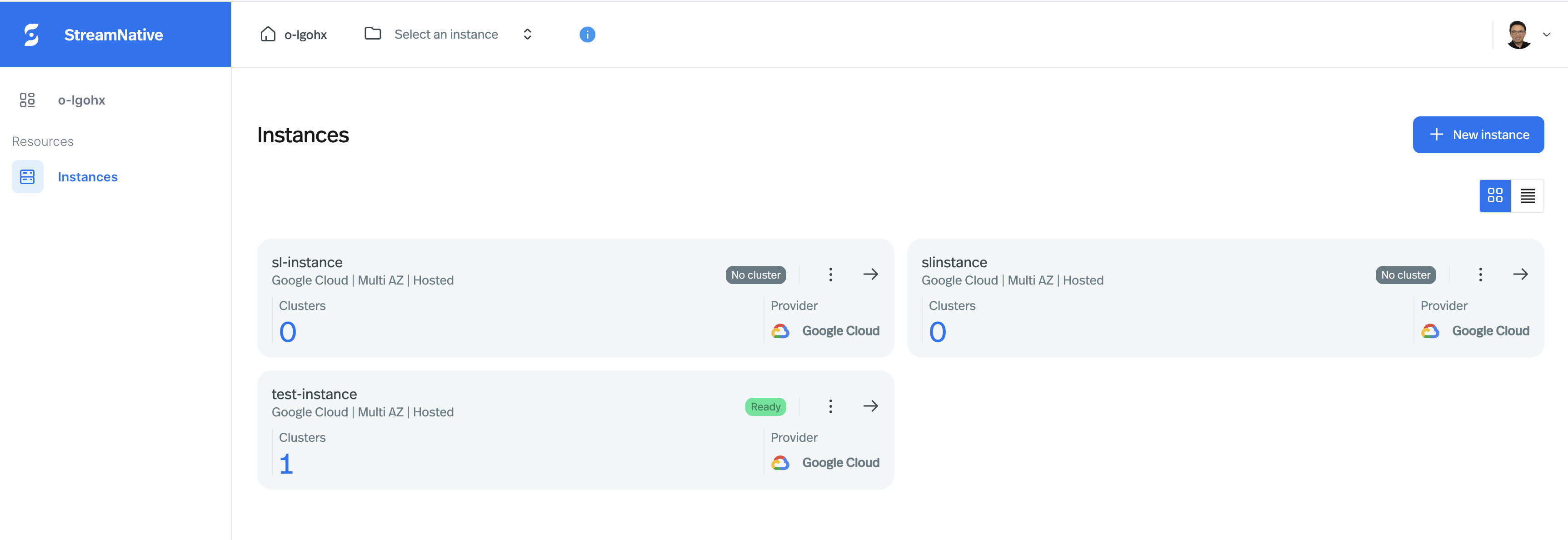

4. On the Instances page, you should able to see the list of instances available for the organization. In each Instance Card, you are able to see Instance Name, Status, Cloud Provider, Number of Clusters, and etc. You can also click the right arrow icon to go the Instance Dashboard page.

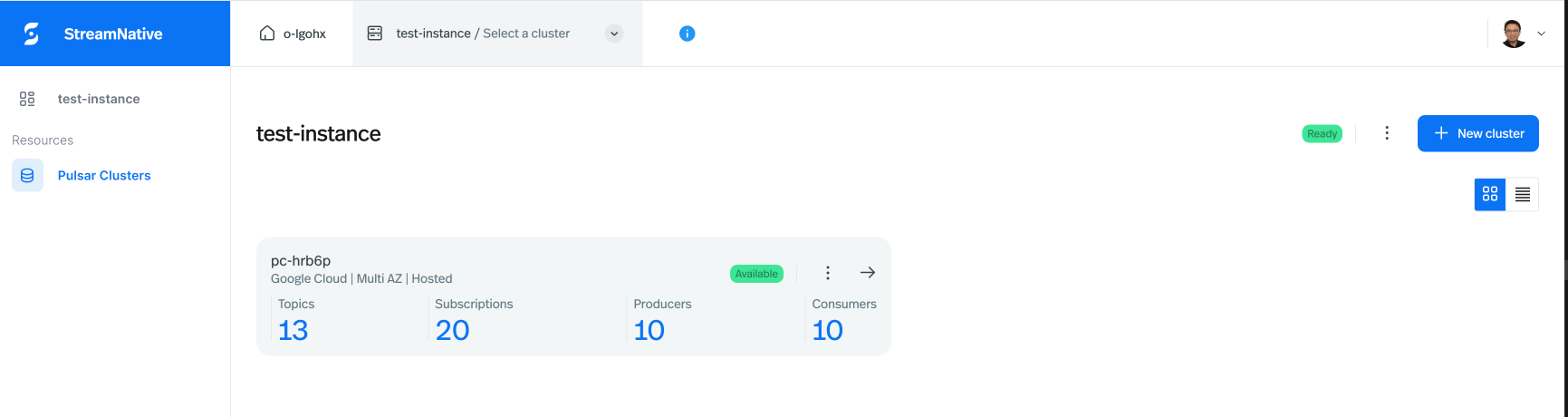

5. On the Instance Dashboard page, you are able to see the list of clusters available for the instance. In each Cluster Card, you are able to see Cluster Name, Status, Number of Topics, Number of Subscriptions, Number of Producers, Number of Consumers, and etc. You can also click the right arrow icon to go the Cluster Dashboard page.



1. Navigate to the Instances page.

2. Click the ellipsis at the top right corner of the instance card that you want to delete, and then click Delete.

3. In the Delete instance dialog, enter the instance name and then click Confirm.
