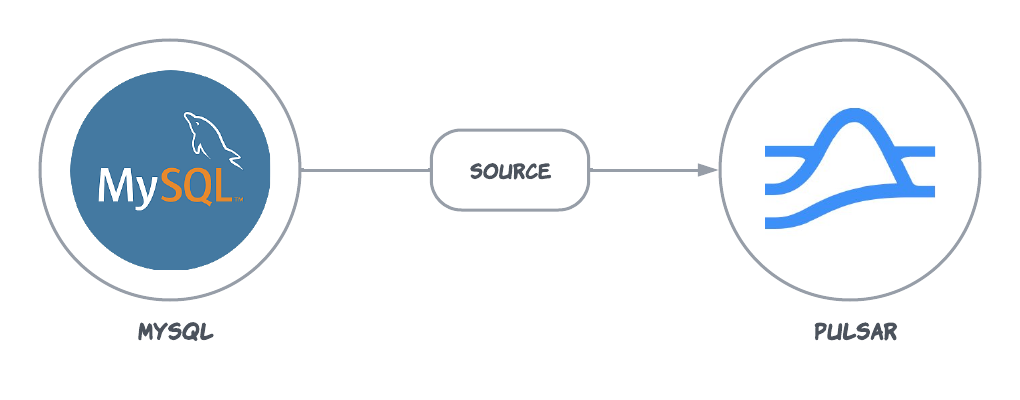

The MySQL source connector pulls messages from MySQL and persists the messages to Pulsar topics by using debezium.

​

Quick start

​

Prerequisites

The prerequisites for connecting a Debezium MySQL source connector to external systems include:

1. Create a MySQL service: This connector uses the debezium v1.9, Please refer to this document to see the compatible MySQL versions.
2. Prepare MySQL Database: Please refer to this document to complete the prepare steps on MySQL.

​

1. Create a table on MySQL

Run the following SQL command on your MySQL.

CREATE DATABASE io_database;
CREATE TABLE `io_database`.`io-test` (
    `id` INT AUTO_INCREMENT,
    `first_name` TEXT,
    `last_name` TEXT,
    `age` INT,
    PRIMARY KEY (`id`)
);

​

2. Create a connector

The following command shows how to use pulsarctl to create a builtin connector. If you want to create a non-builtin connector, you need to replace --source-type debezium-mysql with --archive /path/to/pulsar-io-debezium-mysql.nar. You can find the button to download the nar package at the beginning of the document.

pulsarctl sources create \
  --source-type debezium-mysql \
  --name debezium-mysql-source \
  --tenant public \
  --namespace default \
  --parallelism 1 \
  --source-config \
  '{
    "database.hostname": "Your hostname of MySQL",
    "database.port": "Your port of MySQL",
    "database.user": "Your user of MySQL",
    "database.password": "Your password of MySQL",
    "database.dbname": "Your dbname of MySQL",
    "table.whitelist": "public.io-test",
    "database.server.name": "mydbserver"
  }'

The --source-config is the minimum necessary configuration for starting this connector, and it is a JSON string. You need to substitute the relevant parameters with your own. If you want to configure more parameters, see Configuration Properties for reference.

You can set multiple tables for “table.whitelist”, and the connector will send data from each table to a different topic of pulsar. The topic naming rule is: “{{database.server.name}}.{{table.name}}”. For examples: “public/default/mydbserver.public.io-test”.You can also choose to use a variety of other tools to create a connector:

​

3. Insert and update a data to table

You can insert and update using the sql:

INSERT INTO `io_database`.`io-test` (`first_name`, `last_name`, `age`)
VALUES ('mysql-io-test', 'streamnative', 4);

UPDATE `io_database`.`io-test`
SET `age` = 5, `last_name` = 'sn'
WHERE `first_name` = 'mysql-io-test' AND `last_name` = 'streamnative';

​

4. Show data using Pulsar client

bin/pulsar-client \
--url "Your Pulsar serviceUrl" \
consume "public/default/mydbserver.io_database.io-test" -s "test-sub" -n 10 -p Earliest

----- got message -----
key:[eyJpZCI6MX0=], properties:[], content:{"before":null,"after":{"id":1,"first_name":"mysql-io-test","last_name":"streamnative","age":4},"source":{"version":"1.9.7.Final","connector":"mysql","name":"mydbserver","ts_ms":1698912778000,"snapshot":"false","db":"io_database","sequence":null,"table":"io-test","server_id":2017181175,"gtid":null,"file":"mysql-bin-changelog.000072","pos":1333,"row":0,"thread":null,"query":null},"op":"c","ts_ms":1698912778909,"transaction":null}
sidebarTitle: overview.md
----- got message -----
key:[eyJpZCI6MX0=], properties:[], content:{"before":{"id":1,"first_name":"mysql-io-test","last_name":"streamnative","age":4},"after":{"id":1,"first_name":"mysql-io-test","last_name":"sn","age":5},"source":{"version":"1.9.7.Final","connector":"mysql","name":"mydbserver","ts_ms":1698912782000,"snapshot":"false","db":"io_database","sequence":null,"table":"io-test","server_id":2017181175,"gtid":null,"file":"mysql-bin-changelog.000072","pos":1677,"row":0,"thread":null,"query":null},"op":"u","ts_ms":1698912782158,"transaction":null}

​

Configuration Properties

The configuration of Debezium source connector has the following properties.

​

Advanced features

​

Converter options

• org.apache.kafka.connect.json.JsonConverter

  Thejson-with-envelope config is valid only for the JsonConverter. By default, the value is set to false. When the json-with-envelope value is set to false, the consumer uses the schema Schema.KeyValue(Schema.AUTO_CONSUME(), Schema.AUTO_CONSUME(), KeyValueEncodingType.SEPARATED), and the message only consists of the payload. When the json-with-envelope value is set to true, the consumer uses the schema Schema.KeyValue(Schema.BYTES, Schema.BYTES), and the message consists of the schema and the payload.

• org.apache.pulsar.kafka.shade.io.confluent.connect.avro.AvroConverter

  If you select the AvroConverter, the consumer uses the schema Schema.KeyValue(Schema.AUTO_CONSUME(), Schema.AUTO_CONSUME(), KeyValueEncodingType.SEPARATED), and the message consists of the payload.

​

Used topic on Pulsar

Currently, the destination topic (specified by the destination-topic-name option ) is a required configuration but it is not used for the Debezium connector to save data. The Debezium connector saves data on the following 4 types of topics:

• One topic for storing the database metadata messages. It is named with the database server name ( database.server.name), like public/default/database.server.name.
• One topic (offset.storage.topic) for storing the offset metadata messages. The connector saves the last successfully-committed offsets on this topic.
• (Option) One topic (database.history.pulsar.topic) for storing the database history information. The connector writes and recovers DDL statements on this topic.
• One per-table topic. The connector writes change events for all operations that occur in a table to a single Pulsar topic that is specific to that table. For examples: “public/default/mydbserver.public.io-test” If automatic topic creation is disabled on the Pulsar broker, you need to manually create these 4 types of topics and the destination topic.
