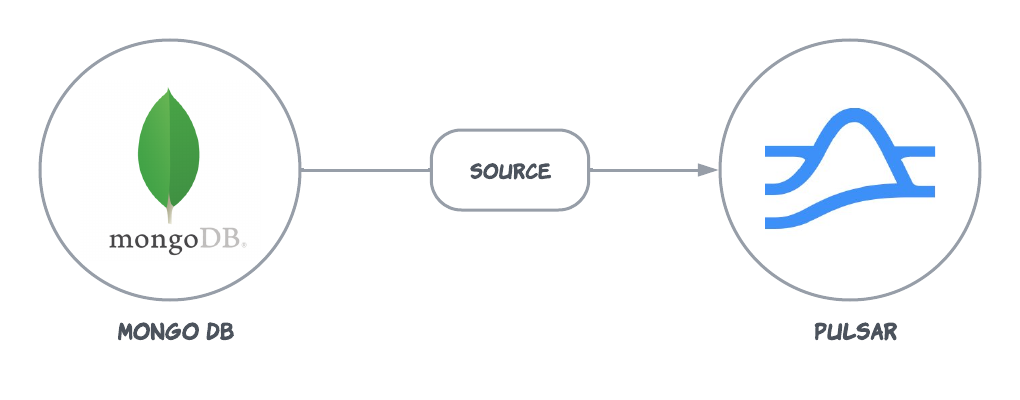

The Debezium MongoDB source connector pulls messages from MongoDB and persists the messages to Pulsar topics.

​
Quick start

​
Prerequisites

The prerequisites for connecting a Debezium MongoDB source connector to external systems include:

  1. Create a MongoDB service: This connector uses the debezium v1.9, Please refer to this document to see the compatible MongoDB versions.
  2. Prepare MongoDB Database: Please refer to this document to complete the prepare steps on MongoDB.

​
1. Prepare MongoDB service

Initialize MongoDB replica set and insert some test data. You can use the following command to start a MongoDB service for the testing purpose.

docker run -d -p 27017:27017 --name mongodb mongo:latest --replSet rs0

Shell into the container:

docker exec -it mongodb mongosh

Initialize replica sets:

rs.initiate({_id: "rs0", members: [{ _id: 0, host: "localhost:27017" }]})

​
2. Create a connector

The following command shows how to use pulsarctl to create a builtin connector. If you want to create a non-builtin connector, you need to replace --source-type debezium-mongodb with --archive /path/to/pulsar-io-debezium-mongodb.nar. You can find the button to download the nar package at the beginning of the document.

If you are a StreamNative Cloud user, you need set up your environment first.

pulsarctl sources create \
  --source-type debezium-mongodb \
  --name debezium-mongodb \
  --tenant public \
  --namespace default \
  --parallelism 1 \
  --source-config \
  '{
    "mongodb.hosts": "rs0/localhost:27017",
    "mongodb.name": "debezium",
    "mongodb.task.id": "1",
    "database.whitelist": "inventory"
  }'

The --source-config is the minimum necessary configuration for starting this connector, and it is a JSON string. You need to substitute the relevant parameters with your own.

If you want to configure more parameters, see Configuration Properties for reference.

You can also choose to use a variety of other tools to create a connector:

​
3. Insert and update a data to the collection

Start the mongosh and run:

use inventory;
db.customers.insert([ { _id: NumberLong("1"), first_name: 'Bob', last_name: 'Hopper', email: 'thebob@example.com', unique_id: UUID() }] );

​
4. Show data using Pulsar client

If your connector is created on StreamNative Cloud, you need to authenticate your clients. See Build applications using Pulsar clients for more information.

bin/pulsar-client \
--url "Your Pulsar serviceUrl" \
consume "persistent://public/default/debezium.inventory.customers" -s "test-sub" -n 0 -p Earliest

----- got message -----
key:[eyJpZCI6IjQifQ==], properties:[], content:{"after":"{\"_id\": {\"$numberLong\": \"1\"},\"first_name\": \"Bob\",\"last_name\": \"Hopper\",\"email\": \"thebob@example.com\",\"unique_id\": {\"$binary\": \"xQezJ8i5QTGDG9NXlVFUEw==\",\"$type\": \"04\"}}","patch":null,"filter":null,"updateDescription":null,"source":{"version":"1.9.7.Final","connector":"mongodb","name":"debezium","ts_ms":1701329265000,"snapshot":"false","db":"inventory","sequence":null,"rs":"rs0","collection":"customers","ord":1,"h":null,"tord":null,"stxnid":null,"lsid":null,"txnNumber":null},"op":"c","ts_ms":1701329265295,"transaction":null}

​
Configuration Properties

The configuration of Debezium Mongodb source connector has the following properties.

NameRequiredSensitiveDefaultDescription
mongodb.hoststruefalsenullThe comma-separated list of hostname and port pairs (in the form ‘host’ or ‘host:port’) of the MongoDB servers in the replica set. The list contains a single hostname and a port pair. If mongodb.members.auto.discover is set to false, the host and port pair are prefixed with the replica set name (e.g., rs0/localhost:27017).
mongodb.nametruefalsenullA unique name that identifies the connector and/or MongoDB replica set or shared cluster that this connector monitors. Each server should be monitored by at most one Debezium connector, since this server name prefixes all persisted Kafka topics emanating from the MongoDB replica set or cluster.
mongodb.userfalsetruenullName of the database user to be used when connecting to MongoDB. This is required only when MongoDB is configured to use authentication.
mongodb.passwordfalsetruenullPassword to be used when connecting to MongoDB. This is required only when MongoDB is configured to use authentication.
mongodb.task.idtruefalsenullThe taskId of the MongoDB connector that attempts to use a separate task for each replica set.
database.whitelistfalsefalsenullA list of all databases hosted by this server which is monitored by the connector.

By default, all databases are monitored.
key.converterfalsefalsenullThe converter provided by Kafka Connect to convert record key.
value.converterfalsefalsenullThe converter provided by Kafka Connect to convert record value.
database.history.pulsar.topicfalsefalsenullThe name of the database history topic where the connector writes and recovers DDL statements.

Note: this topic is for internal use only and should not be used by consumers.
database.history.pulsar.service.urlfalsefalsenullPulsar cluster service URL for history topic.
offset.storage.topicfalsefalsenullRecord the last committed offsets that the connector successfully completes. By default, it’s topicNamespace + "/" + sourceName + "-debezium-offset-topic". eg. persistent://public/default/debezium-mongodb-source-debezium-offset-topic
json-with-envelopefalsefalsefalseThejson-with-envelope config is valid only for the JsonConverter. By default, the value is set to false. When the json-with-envelope value is set to false, the consumer uses the schema Schema.KeyValue(Schema.AUTO_CONSUME(), Schema.AUTO_CONSUME(), KeyValueEncodingType.SEPARATED), and the message only consists of the payload. When the json-with-envelope value is set to true, the consumer uses the schema Schema.KeyValue(Schema.BYTES, Schema.BYTES), and the message consists of the schema and the payload.

For more configuration properties, plesae see Debezium MongoDB connector configuration properties

​
Advanced features

​
Converter options

  • org.apache.kafka.connect.json.JsonConverter

    Thejson-with-envelope config is valid only for the JsonConverter. By default, the value is set to false. When the json-with-envelope value is set to false, the consumer uses the schema Schema.KeyValue(Schema.AUTO_CONSUME(), Schema.AUTO_CONSUME(), KeyValueEncodingType.SEPARATED), and the message only consists of the payload. When the json-with-envelope value is set to true, the consumer uses the schema Schema.KeyValue(Schema.BYTES, Schema.BYTES), and the message consists of the schema and the payload.

  • org.apache.pulsar.kafka.shade.io.confluent.connect.avro.AvroConverter

    If you select the AvroConverter, the consumer uses the schema Schema.KeyValue(Schema.AUTO_CONSUME(), Schema.AUTO_CONSUME(), KeyValueEncodingType.SEPARATED), and the message consists of the payload.

​
Used topic on Pulsar

Currently, the destination topic (specified by the destination-topic-name option ) is a required configuration but it is not used for the Debezium connector to save data. The Debezium connector saves data on the following 4 types of topics:

  • One topic for storing the database metadata messages. It is named with the database server name ( database.server.name), like public/default/database.server.name.
  • One topic (offset.storage.topic) for storing the offset metadata messages. The connector saves the last successfully-committed offsets on this topic.
  • (Option) One topic (database.history.pulsar.topic) for storing the database history information. The connector writes and recovers DDL statements on this topic.
  • One per-table topic. The connector writes change events for all operations that occur in a table to a single Pulsar topic that is specific to that table. For examples: “public/default/mydbserver.public.io-test” If automatic topic creation is disabled on the Pulsar broker, you need to manually create these 4 types of topics and the destination topic.
