Prerequisites

Before deploying a connector to StreamNative Cloud, make sure the following prerequisites have been met:

A running external data system service.
A running Pulsar Cluster on StreamNative Cloud and the required environment has been set up.
At least one of the required tools: snctl, pulsarctl, pulsar-admin , or the Terraform module. For a quickstart of setting up pulsarctl and pulsar-admin, see set up client tools.

Create a built-in connector

Before creating a connector, it’s highly recommended to do the following:

Check connector availability to ensure the version number of the connector you want to create is supported on StreamNative Cloud.
Go to StreamNative Hub and find the connector-specific docs of your version for configuration reference.

The following example shows how to create a data generator source connector named test on StreamNative Cloud using different tools. The builtin:// is followed by the name of the built-in connector, such as builtin://data-generator.

snctl
pulsarctl
pulsar-admin
Terraform
Rest API

To create a data generator source connector named test, run the following command.

snctl pulsar admin sources create --archive builtin://data-generator --destination-topic-name public/default/dg-test --source-config '{"sleepBetweenMessages": 60}' --name test --sn-service-account $SERVICE_ACCOUNT

Replace $SERVICE_ACCOUNT with the StreamNative Cloud service account that the connector uses as its runtime identity. To select the runtime service account interactively, use --use-sn-service-account.

Only Pulsar 4.0.x clusters running version 4.0.10.6 or later, or Pulsar 4.2.x clusters running version 4.2.1.4 or later, support the --sn-service-account flag.You can use --as-service-account instead of --sn-service-account if you are using other versions of Pulsar clusters.

You should see the following output:

Created test successfully

If you want to verify whether the data generator source connector has been created successfully, run the following command:

snctl pulsar admin sources list

You should see the following output:

+---------------------+
| PULSAR SOURCES NAME |
+---------------------+
| test                |
+---------------------+

If you want to create a sink connector, use the snctl pulsar admin sinks create command.

To create a data generator source connector named test, run the following command.

pulsarctl sources create --archive builtin://data-generator --destination-topic-name public/default/dg-test --source-config '{"sleepBetweenMessages": 60}' --name test

You should see the following output:

Created test successfully

If you want to verify whether the data generator source connector has been created successfully, run the following command:

pulsarctl sources list

You should see the following output:

+---------------------+
| PULSAR SOURCES NAME |
+---------------------+
| test                |
+---------------------+

If you want to create a sink connector, use the pulsarctl sinks create command.

To create a data generator source connector named test, run the following command.

./bin/pulsar-admin \
    --admin-url "${WEB_SERVICE_URL}" \
    --auth-plugin org.apache.pulsar.client.impl.auth.oauth2.AuthenticationOAuth2 \
    --auth-params '{"privateKey":"file:///YOUR-KEY-FILE-PATH",
        "issuerUrl":"https://auth.streamnative.cloud/",
        "audience":"urn:sn:pulsar:${orgName}:${instanceName}}'
 sources create --archive builtin://data-generator --destination-topic-name public/default/dg-test --source-config '{"sleepBetweenMessages": 60}' --name test

Replace the placeholder variables with the actual values that you can get when setting up client tools.

admin-url: the HTTP service URL of your Pulsar cluster.
private_key: the path to the downloaded OAuth2 key file.
audience: the Uniform Resource Name (URN), which is a combination of the urn:sn:pulsar, your organization name, and your Pulsar instance name.
- ${orgName}: the name of your organization.
- ${instanceName}: the name of your instance.

If you want to list the submitted connector for a double check, run the following command:

./bin/pulsar-admin sources list

You should see the following output:

[
  "test"
]

To reduce the complexity of your command, you can add the above parameters with values into the conf/client.conf file under the downloaded Pulsar release. Once it’s configured, you can run a simple command instead:

./bin/pulsar-admin sources create --archive builtin://data-generator --destination-topic-name public/default/dg-test --source-config '{"sleepBetweenMessages": 60}' --name test

Add the following content to your Terraform file:

terraform {
  required_providers {
    pulsar = {
      version = "0.2.0"
      source = "registry.terraform.io/streamnative/pulsar"
    }
  }
}

provider "pulsar" {
  web_service_url = "${WEB_SERVICE_URL}"
  audience        = "urn:sn:pulsar:${orgName}:${instanceName}"
  issuer_url      = "https://auth.streamnative.cloud/"
  key_file_path   = "file:///YOUR-KEY-FILE-PATH"
  api_version     = 3
}

resource "pulsar_source" "test" {
  provider = pulsar
  name      = "dg-test-tf"
  tenant    = "public"
  namespace = "default"
  archive = "builtin://data-generator"
  destination_topic_name = "public/default/dg-test"
  processing_guarantees = "ATMOST_ONCE"
  configs = "{\"sleepBetweenMessages\":\"60\"}"
}

Call the following commands in your Terraform file directory:

terraform init

# output
Terraform has been successfully initialized!

terraform apply

# output
Terraform used the selected providers to generate the following execution plan. Resource actions are indicated with the following symbols:
  + create

Terraform will perform the following actions:

  # pulsar_source.test will be created
  + resource "pulsar_source" "test" {
      + archive                = "builtin://data-generator"
      + classname              = (known after apply)
      + configs                = jsonencode(
            {
              + sleepBetweenMessages = "60"
            }
        )
      + cpu                    = 1
      + destination_topic_name = "public/default/dg-test"
      + disk_mb                = 10240
      + id                     = (known after apply)
      + name                   = "dg-test-tf"
      + namespace              = "default"
      + parallelism            = 1
      + processing_guarantees  = "ATMOST_ONCE"
      + ram_mb                 = 1024
      + tenant                 = "public"
    }

Plan: 1 to add, 0 to change, 0 to destroy.

Do you want to perform these actions?
  Terraform will perform the actions described above.
  Only 'yes' will be accepted to approve.

  Enter a value: yes

pulsar_source.test: Creating...
pulsar_source.test: Creation complete after 1s [id=public/default/dg-test-tf]

Apply complete! Resources: 1 added, 0 changed, 0 destroyed.

You can use snctl, pulsarctl or pulsar-admin to list the source connector submitted using Terraform.

To create a data generator source connector named test, run the following command.

curl -X POST https://${WEB_SERVICE_URL}/admin/v3/sources/{tenant}/{namespace}/test \
  -H 'Authorization: Bearer <API Key>' \
  -H "Content-Type: multipart/form-data" \
  -F 'sourceConfig={"name": "test", "tenant": "public", "namespace": "default", "archive": "builtin://data-generator", "topicName": "public/default/dg-test", "configs": {"sleepBetweenMessages": "60"}};type=application/json'

If you want to list the submitted connector for a double check, run the following command:

curl -X GET https://pc-ae474868.aws-use2-dixie-snc.streamnative.test.aws.sn2.dev/admin/v3/sources/public/default \
  --header 'Authorization: Bearer <API Key>'

["test"]

For all the common configurations of built-in connectors, see Configuration reference.

Pass sensitive configs to connector

Some connectors require sensitive information, such as passwords, token, to be passed to the connector. And you may not want to expose these sensitive information in the connector configuration. To solve this problem, you can use the following methods to pass sensitive information to the connector:

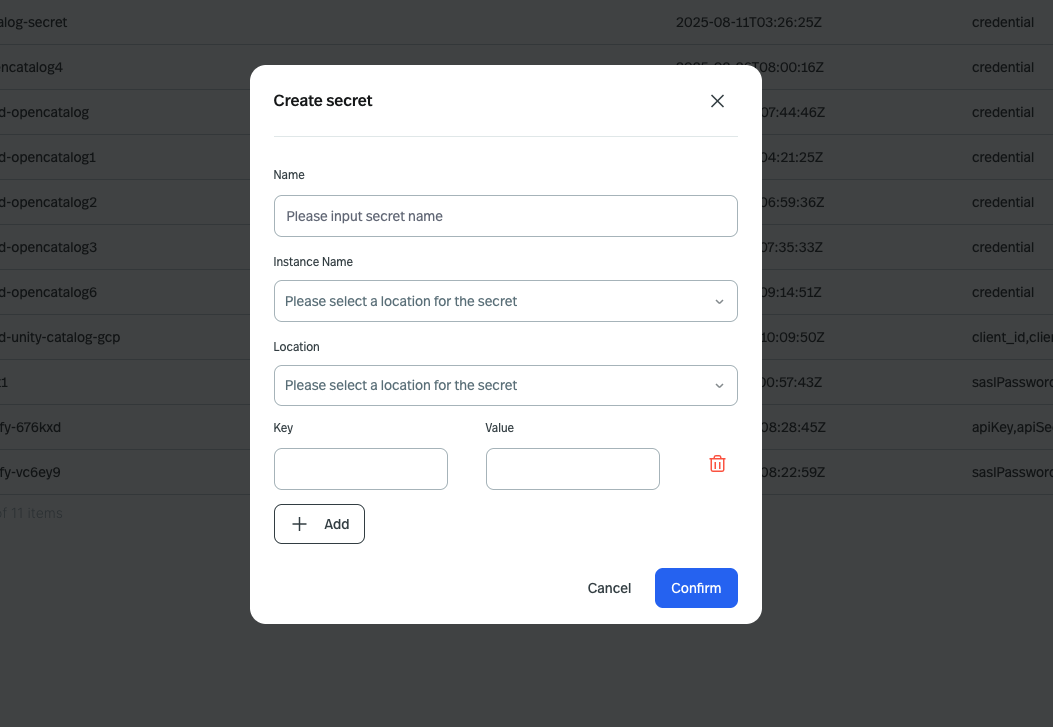

Create a secret For example, the AWS lambda sink connector requires the AWS access key and secret key to be passed to the connector. You can create a secret in the console UI and pass the secret name to the connector configuration.

The location should be the same as the region of your Pulsar cluster.The awsAccessKey and awsSecretKey is the field name, and the lambda-sink-secret can be any unique name you want to give to the secret.

Only “sensitive” fields are able to load from secrets. You can get the list of sensitive fields from the connector configuration reference. E.g. AWS lambda sink configurations

Pass secrets to the connector configuration The following example shows how to create an AWS lambda sink connector named test on StreamNative Cloud using different tools. The builtin:// is followed by the name of the built-in connector, such as builtin://data-generator.

snctl
pulsarctl
pulsar-admin
Terraform
Rest API

To create an AWS lambda sink connector named test, run the following command.

snctl pulsar admin sinks create --archive builtin://aws-lambda --inputs public/default/lambda-sink-test --sink-config '{"awsRegion": "us-west-2","lambdaFunctionName": "test-hello","payloadFormat": "V2"}' --secrets '{"awsAccessKey":{"path":"lambda-sink-secret","key":"awsAccessKey"},"awsSecretKey":{"path":"lambda-sink-secret","key":"awsSecretKey"}}' --name test --sn-service-account $SERVICE_ACCOUNT

You should see the following output:

Created test successfully

The awsAccessKey and awsSecretKey is the field name, and the lambda-sink-secret is the secret name you created in UI.

If you want to verify whether the AWS lambda sink connector has been created successfully, run the following command:

snctl pulsar admin sinks list

You should see the following output:

+---------------------+
| PULSAR SINKS NAME |
+---------------------+
| test                |
+---------------------+

To create an AWS lambda sink connector named test, run the following command.

pulsarctl sinks create --archive builtin://aws-lambda --inputs public/default/lambda-sink-test --sink-config '{"awsRegion": "us-west-2","lambdaFunctionName": "test-hello","payloadFormat": "V2"}' --secrets '{"awsAccessKey":{"path":"lambda-sink-secret","key":"awsAccessKey"},"awsSecretKey":{"path":"lambda-sink-secret","key":"awsSecretKey"}}' --name test

You should see the following output:

Created test successfully

The awsAccessKey and awsSecretKey is the field name, and the lambda-sink-secret is the secret name you created in UI.

If you want to verify whether the AWS lambda sink connector has been created successfully, run the following command:

pulsarctl sinks list

You should see the following output:

+---------------------+
| PULSAR SINKS NAME |
+---------------------+
| test                |
+---------------------+

To create an AWS lambda sink connector named test, run the following command.

./bin/pulsar-admin \
    --admin-url "${WEB_SERVICE_URL}" \
    --auth-plugin org.apache.pulsar.client.impl.auth.oauth2.AuthenticationOAuth2 \
    --auth-params '{"privateKey":"file:///YOUR-KEY-FILE-PATH",
        "issuerUrl":"https://auth.streamnative.cloud/",
        "audience":"urn:sn:pulsar:${orgName}:${instanceName}}'
 sinks create --archive builtin://aws-lambda --inputs public/default/lambda-sink-test --sink-config '{"awsRegion": "us-west-2","lambdaFunctionName": "test-hello","payloadFormat": "V2"}' --secrets '{"awsAccessKey":{"path":"lambda-sink-secret","key":"awsAccessKey"},"awsSecretKey":{"path":"lambda-sink-secret","key":"awsSecretKey"}}' --name test

Replace the placeholder variables with the actual values that you can get when setting up client tools.

admin-url: the HTTP service URL of your Pulsar cluster.
private_key: the path to the downloaded OAuth2 key file.
audience: the Uniform Resource Name (URN), which is a combination of the urn:sn:pulsar, your organization name, and your Pulsar instance name.
- ${orgName}: the name of your organization.
- ${instanceName}: the name of your instance.

If you want to list the submitted connector for a double check, run the following command:

./bin/pulsar-admin sinks list

You should see the following output:

[
  "test"
]

The awsAccessKey and awsSecretKey is the field name, and the lambda-sink-secret is the secret name you created in UI.

./bin/pulsar-admin sinks create --archive builtin://aws-lambda --inputs public/default/lambda-sink-test --sink-config '{"awsRegion": "us-west-2","lambdaFunctionName": "test-hello","payloadFormat": "V2"}' --secrets '{"awsAccessKey":{"path":"lambda-sink-secret","key":"awsAccessKey"},"awsSecretKey":{"path":"lambda-sink-secret","key":"awsSecretKey"}}' --name test

Add the following content to your Terraform file:

terraform {
  required_providers {
    pulsar = {
      version = "0.2.0"
      source = "registry.terraform.io/streamnative/pulsar"
    }
  }
}

provider "pulsar" {
  web_service_url = "${WEB_SERVICE_URL}"
  audience        = "urn:sn:pulsar:${orgName}:${instanceName}"
  issuer_url      = "https://auth.streamnative.cloud/"
  key_file_path   = "file:///YOUR-KEY-FILE-PATH"
  api_version     = 3
}

resource "pulsar_sink" "test" {
  provider = pulsar
  name      = "lambda-sink-test-tf"
  tenant    = "public"
  namespace = "default"
  archive = "builtin://aws-lambda"
  auto_ack = true
  cleanup_subscription = true
  destination_topic_name = "public/default/lambda-sink-test"
  processing_guarantees = "ATMOST_ONCE"
  configs = "{\"awsRegion\":\"us-west-2\",\"lambdaFunctionName\":\"test-hello\",\"payloadFormat\":\"V2\"}"
  secrets = "{\"awsAccessKey\":{\"path\":\"lambda-sink-secret\",\"key\":\"awsAccessKey\"},\"awsSecretKey\":{\"path\":\"lambda-sink-secret\",\"key\":\"awsSecretKey\"}}"
}

Call the following commands in your Terraform file directory:

terraform init

# output
Terraform has been successfully initialized!

terraform apply

# output
Terraform used the selected providers to generate the following execution plan. Resource actions are indicated with the following symbols:
  + create

Terraform will perform the following actions:

  # pulsar_sink.test will be created
  + resource "pulsar_sink" "test" {
      + archive               = "builtin://aws-lambda"
      + auto_ack              = true
      + classname             = (known after apply)
      + cleanup_subscription  = true
      + configs               = jsonencode(
            {
              + awsRegion          = "us-west-2"
              + lambdaFunctionName = "test-hello"
              + payloadFormat      = "V2"
            }
        )
      + cpu                   = 1
      + disk_mb               = 10240
      + id                    = (known after apply)
      + inputs                = [
          + "public/default/lambda-sink-test",
        ]
      + name                  = "lambda-sink-test-tf"
      + namespace             = "default"
      + parallelism           = 1
      + processing_guarantees = "ATMOST_ONCE"
      + ram_mb                = 1024
      + retain_ordering       = true
      + secrets               = jsonencode(
            {
              + awsAccessKey = {
                  + key  = "awsAccessKey"
                  + path = "lambda-sink-secret"
                }
              + awsSecretKey = {
                  + key  = "awsSecretKey"
                  + path = "lambda-sink-secret"
                }
            }
        )
      + subscription_position = "Earliest"
      + tenant                = "public"
    }

Plan: 1 to add, 0 to change, 0 to destroy.

Do you want to perform these actions?
  Terraform will perform the actions described above.
  Only 'yes' will be accepted to approve.

  Enter a value: yes

pulsar_sink.test: Creating...
pulsar_sink.test: Creation complete after 5s [id=public/default/lambda-sink-test-tf]

Apply complete! Resources: 1 added, 0 changed, 0 destroyed.

The awsAccessKey and awsSecretKey is the field name, and the lambda-sink-secret is the secret name you created in UI.

You can use snctl, pulsarctl or pulsar-admin to list the source connector submitted using Terraform.

To create an AWS lambda sink connector named test, run the following command.

curl -X POST https://${WEB_SERVICE_URL}/admin/v3/sinks/{tenant}/{namespace}/test \
  -H 'Authorization: Bearer <API Key>' \
  -H "Content-Type: multipart/form-data" \
  -F 'sinkConfig={"name": "test", "tenant": "public", "namespace": "default", "archive": "builtin://aws-lambda", "inputs": ["public/default/lambda-sink-test"], "configs": {"awsRegion": "us-west-2","lambdaFunctionName": "test-hello", "payloadFormat": "V2"}, "secrets": {"awsAccessKey":{"path":"lambda-sink-secret","key":"awsAccessKey"},"awsSecretKey":{"path":"lambda-sink-secret","key":"awsSecretKey"}}};type=application/json'

If you want to list the submitted connector for a double check, run the following command:

curl -X GET https://pc-ae474868.aws-use2-dixie-snc.streamnative.test.aws.sn2.dev/admin/v3/sinks/public/default \
  --header 'Authorization: Bearer <API Key>'

["test"]

The awsAccessKey and awsSecretKey is the field name, and the lambda-sink-secret is the secret name you created in UI.

For all the common configurations of built-in connectors, see Configuration reference.

Create a custom connector

Before creating a connector, it’s highly recommended to do the following:

Check connector availability to ensure the version number of the connector you want to create is supported on StreamNative Cloud.
Go to StreamNative Hub and find the connector-specific docs of your version for configuration reference.

To create a custom Pulsar Connector, you need to upload the connector jar/nar file to the StreamNative Cloud Package service first. Below are the steps:

Upload your connector file to Pulsar

snctl
Pulsarctl
Pulsar-admin

Upload packages

snctl pulsar admin packages upload sink://public/default/custom-connect@v1 \
--path /tmp/your-connector.jar \
--description "custom connector" \
--properties fileName=your-connector.jar

You should see the following output:

The package 'sink://public/default/custom-connect@v1' uploaded from path '/tmp/your-connector.jar' successfully

You can also upload your package to source://${tenant}/${namespace}/${name}@{$version}, currently Pulsar Package Service supports below protocols:

source://
sink://
function://

You need to set the context for Pulsarctl first:

# create a context
pulsarctl context set ${context-name}  \
--admin-service-url ${admin-service-url} \
--issuer-endpoint ${issuerUrl} \
--audience urn:sn:pulsar:${orgName}:${instanceName} \
--key-file ${privateKey}

# activate oauth2
pulsarctl oauth2 activate

Replace the placeholder variables with the actual values that you can get when setting up client tools.

context-name: any name you want
admin-service-url: the HTTP service URL of your Pulsar cluster.
privateKey: the path to the downloaded OAuth2 key file.
issuerUrl: the URL of the OAuth2 issuer.
audience: the Uniform Resource Name (URN), which is a combination of the urn:sn:pulsar, your organization name, and your Pulsar instance name.
- ${orgName}: the name of your organization.
- ${instanceName}: the name of your instance.

Upload packages

pulsarctl packages upload sink://public/default/custom-connect@v1 \
--path /tmp/your-connector.jar \
--description "custom connector" \
--properties fileName=your-connector.jar

You should see the following output:

The package 'sink://public/default/custom-connect@v1' uploaded from path '/tmp/your-connector.jar' successfully

You can also upload your package to source://${tenant}/${namespace}/${name}@{$version}, currently Pulsar Package Service supports below protocols:

source://
sink://
function://

./bin/pulsar-admin \
    --admin-url "${WEB_SERVICE_URL}" \
    --auth-plugin org.apache.pulsar.client.impl.auth.oauth2.AuthenticationOAuth2 \
    --auth-params '{"privateKey":"file://${privateKey}","issuerUrl":"${issuerUrl}","audience":"urn:sn:pulsar:${orgName}:${instanceName}}' \
    packages upload sink://public/default/custom-connect@v1 \
    --path /tmp/your-connector.jar \
    --description "custom connector" \
    --properties fileName=your-connector.jar

Replace the placeholder variables with the actual values that you can get when setting up client tools.

admin-url: the HTTP service URL of your Pulsar cluster.
privateKey: the path to the downloaded OAuth2 key file.
issuerUrl: the URL of the OAuth2 issuer.
audience: the Uniform Resource Name (URN), which is a combination of the urn:sn:pulsar, your organization name, and your Pulsar instance name.
- ${orgName}: the name of your organization.
- ${instanceName}: the name of your instance.

You should see the following output:

The package 'sink://public/default/custom-connect@v1' uploaded from path '/tmp/your-connector.jar' successfully

You can also upload your package to source://${tenant}/${namespace}/${name}@{$version}, currently Pulsar Package Service supports below protocols:

source://
sink://
function://

To create a custom connector, just replace the archive argument to the package URL(like sink://public/default/custom-connect@v1) you uploaded.

​Prerequisites

​Create a built-in connector

​Pass sensitive configs to connector

​Create a custom connector

​Upload your connector file to Pulsar

Prerequisites

Create a built-in connector

Pass sensitive configs to connector

Create a custom connector

Upload your connector file to Pulsar
