AMQP1_0 sink connector

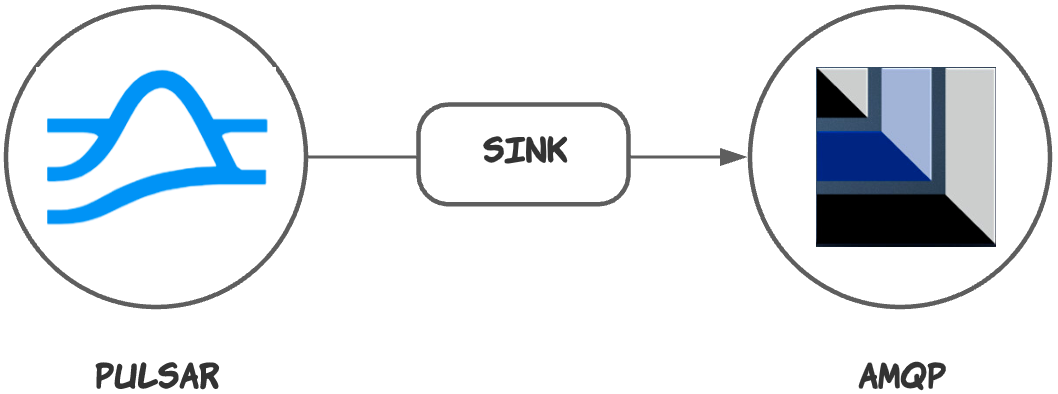

The AMQP1_0 sink connector pulls messages from Pulsar topics and persists messages to AMQP 1.0.

How to get

You can get the AMQP1_0 sink connector using one of the following methods.

Use it with Function Worker

Download the NAR package from here.
Build it from the source code.
1. Clone the source code to your machine.
```
git clone https://github.com/streamnative/pulsar-io-amqp-1-0
```
2. Assume that PULSAR_IO_AMQP1_0_HOME is the home directory for the pulsar-io-amqp1_0 repo. Build the connector in the ${PULSAR_IO_AMQP1_0_HOME} directory.
```
mvn clean install -DskipTests
```
  After the connector is successfully built, a NAR package is generated under the target directory.
```
ls pulsar-io-amqp1_0/target
pulsar-io-amqp1_0-2.9.5.4.nar
```

Use it with Function Mesh

Pull the AMQP1_0 connector Docker image from here.

How to configure

Before using the AMQP1_0 sink connector, you need to configure it.

You can create a configuration file (JSON or YAML) to set the following properties.

Name	Type	Required	Default	Description
`protocol`	String	true	"amqp"	The AMQP protocol.
`host`	String	true	" " (empty string)	The AMQP service host.
`port`	int	true	5672	The AMQP service port.
`username`	String	false	" " (empty string)	The username used to authenticate to ActiveMQ.
`password`	String	false	" " (empty string)	The password used to authenticate to ActiveMQ.
`queue`	String	false	" " (empty string)	The queue name that messages should be read from or written to.
`topic`	String	false	" " (empty string)	The topic name that messages should be read from or written to.
`activeMessageType`	String	false	0	The ActiveMQ message simple class name.
`onlyTextMessage`	boolean	false	false	If it is set to `true`, the AMQP message type must be set to `TextMessage`. Pulsar consumers can consume the messages with schema ByteBuffer.

Configure it with Function Worker

You can create a configuration file (JSON or YAML) to set the properties as below.

Example

JSON

{
    "tenant": "public",
    "namespace": "default",
    "name": "amqp1_0-sink",
    "inputs": ["user-op-queue-topic"],
    "archive": "connectors/pulsar-io-amqp1_0-2.9.5.4.nar",
    "parallelism": 1,
    "configs":
    {
        "protocol": "amqp",
        "host": "localhost",
        "port": "5672",
        "username": "guest",
        "password": "guest",
        "queue": "user-op-queue-pulsar"
    }
}

YAML

tenant: "public"
namespace: "default"
name: "amqp1_0-sink"
inputs:
  - "user-op-queue-topic"
archive: "connectors/pulsar-io-amqp1_0-2.9.5.4.nar"
parallelism: 1

configs:
    protocol: "amqp"
    host: "localhost"
    port: "5672"
    username: "guest"
    password: "guest"
    queue: "user-op-queue-pulsar"

Configure it with Function Mesh

You can submit a CustomResourceDefinitions (CRD) to create an AMQP1_0 sink connector. Using CRD makes Function Mesh naturally integrate with the Kubernetes ecosystem. For more information about Pulsar source CRD configurations, see here.

You can define a CRD file (YAML) to set the properties as below.

apiVersion: compute.functionmesh.io/v1alpha1
kind: Sink
metadata:
  name: amqp-sink-sample
spec:
  image: streamnative/pulsar-io-amqp-1-0:2.9.5.4
  className: org.apache.pulsar.ecosystem.io.amqp.AmqpSink
  replicas: 1
  input:
    topics:
    - persistent://public/default/user-op-queue-topic
    typeClassName: “java.nio.ByteBuffer”
    customSchemaSources:
      “persistent://public/default/user-op-queue-topic”: “org.apache.pulsar.client.impl.schema.ByteBufferSchema”
  sinkConfig:
    protocol: "amqp"
    host: "localhost"
    port: "5672"
    username: "guest"
    password: "guest"
    queue: "user-op-queue-pulsar"
  pulsar:
    pulsarConfig: "test-pulsar-sink-config"
  resources:
    limits:
    cpu: "0.2"
    memory: 1.1G
    requests:
    cpu: "0.1"
    memory: 1G
  java:
    jar: connectors/pulsar-io-amqp1_0-2.9.5.4.nar
  clusterName: test-pulsar
  autoAck: true

How to use

You can use the AMQP1_0 sink connector with Function Worker or Function Mesh.

Use it with Function Worker

You can use the AMQP1_0 source connector as a non built-in connector or a built-in connector.

Use it as non built-in connector

If you already have a Pulsar cluster, you can use the AMQP1_0 sink connector as a non built-in connector directly.

This example shows how to create an AMQP1_0 sink connector on a Pulsar cluster using the command pulsar-admin sinks create.

PULSAR_HOME/bin/pulsar-admin sinks create \
--name amqp1_0-sink \
--archive pulsar-io-amqp1_0-2.9.5.4.nar \
--classname org.apache.pulsar.ecosystem.io.amqp.AmqpSink \
--sink-config-file amqp-sink-config.yaml

Use it as built-in connector

You can make the AMQP1_0 sink connector as a built-in connector and use it on a standalone cluster or on-premises cluster.

Standalone cluster

This example describes how to use the AMQP1_0 sink connector to pull data from Pulsar topics and persist data to AMQP in standalone mode.

Prepare AMQP service using Solace.

docker run -d -p 8080:8080 -p:8008:8008 -p:1883:1883 -p:8000:8000 -p:5672:5672 -p:9000:9000 -p:2222:2222 --shm-size=2g --env username_admin_globalaccesslevel=admin --env username_admin_password=admin --name=solace solace/solace-pubsub-standard

Copy the NAR package of the AMQP1_0 sink connector to the Pulsar connectors directory.

cp pulsar-io-amqp1_0-2.9.5.4.nar $PULSAR_HOME/connectors/pulsar-io-amqp1_0-2.9.5.4.nar

Start Pulsar in standalone mode.

Input

PULSAR_HOME/bin/pulsar standalone

Output

You can find the similar logs below.

Searching for connectors in /Volumes/other/apache-pulsar-2.8.0-SNAPSHOT/./connectors
Found connector ConnectorDefinition(name=amqp1_0, description=AMQP1_0 source and AMQP1_0 connector, sourceClass=org.apache.pulsar.ecosystem.io.amqp.AmqpSource, sinkClass=org.apache.pulsar.ecosystem.io.amqp.AmqpSink, sourceConfigClass=null, sinkConfigClass=null) from /Volumes/other/apache-pulsar-2.8.0-SNAPSHOT/./connectors/pulsar-io-amqp1_0-2.9.5.4.nar
Searching for functions in /Volumes/other/apache-pulsar-2.8.0-SNAPSHOT/./functions

Create an AMQP1_0 sink.

Input

PULSAR_HOME/bin/pulsar-admin sinks create \
--sink-config-file amqp-sink-config.yaml \
--custom-schema-inputs '{"user-op-queue-topic": "org.apache.pulsar.client.impl.schema.ByteBufferSchema"}'

Output

"Created successfully"

Verify whether the sink is created successfully or not.

Input

PULSAR_HOME/bin/pulsar-admin sinks list

Output

[
"amqp1_0-sink"
]

Check the sink status.

Input

PULSAR_HOME/bin/pulsar-admin sinks status --name amqp1_0-sink

Output

  "numInstances" : 1,
  "numRunning" : 1,
  "instances" : [ {
    "instanceId" : 0,
    "status" : {
      "running" : true,
      "error" : "",
      "numRestarts" : 0,
      "numReadFromPulsar" : 0,
      "numSystemExceptions" : 0,
      "latestSystemExceptions" : [ ],
      "numSinkExceptions" : 0,
      "latestSinkExceptions" : [ ],
      "numWrittenToSink" : 0,
      "lastReceivedTime" : 0,
      "workerId" : "c-standalone-fw-localhost-8080"
    }
  } ]
}

Send messages to Pulsar topics.

@Test
public void generateMessages() throws Exception {
    @Cleanup
    PulsarClient pulsarClient = PulsarClient.builder().serviceUrl("pulsar://localhost:6650").build();
    @Cleanup
    Producer<ByteBuffer> producer = pulsarClient.newProducer(Schema.BYTEBUFFER)
            .topic("user-op-queue-topic")
            .create();

    JmsConnectionFactory jmsConnectionFactory = new JmsConnectionFactory();
    @Cleanup
    JMSContext jmsContext = jmsConnectionFactory.createContext();

    for (int i = 0; i < 10; i++) {
        JmsTextMessage textMessage = (JmsTextMessage) jmsContext.createTextMessage("text message - " + i);
        ByteBuf byteBuf = (ByteBuf) textMessage.getFacade().encodeMessage();
        producer.send(byteBuf.nioBuffer());
    }
    System.out.println("finish send messages.");
}

Consume messages from AMQP service using the receiveMessages method.

Input

@Test
public void receiveMessages() throws Exception {
    ConnectionFactory connectionFactory = new JmsConnectionFactory("guest", "guest", "amqp://localhost:5672");
    @Cleanup
    Connection connection = connectionFactory.createConnection();
    connection.start();
    @Cleanup
    Session session = connection.createSession();
    @Cleanup
    MessageConsumer consumer = session.createConsumer(new JmsQueue("user-op-queue-pulsar"));
    for (int i = 0; i < 10; i++) {
        JmsTextMessage textMessage = (JmsTextMessage) consumer.receive();
        System.out.println("receive msg content: " + textMessage.getText());
        textMessage.acknowledge();
    }
}

Check the sink status.

Input

PULSAR_HOME/bin/pulsar-admin sinks status --name amqp1_0-sink

Output

{ "numInstances" : 1, "numRunning" : 1, "instances" : [ { "instanceId" : 0, "status" : { "running" : true, "error" : "", "numRestarts" : 0, "numReadFromPulsar" : 10, "numSystemExceptions" : 0, "latestSystemExceptions" : [ ], "numSinkExceptions" : 0, "latestSinkExceptions" : [ ], "numWrittenToSink" : 10, "lastReceivedTime" : 1615192471713, "workerId" : "c-standalone-fw-localhost-8080" } } ] }

On-premise cluster

This example explains how to create an AMQP1_0 sink connector on an on-premises cluster.

Copy the NAR package of the AMQP1_0 connector to the Pulsar connectors directory.

cp pulsar-io-amqp1_0-2.9.5.4.nar $PULSAR_HOME/connectors/pulsar-io-amqp1_0-2.9.5.4.nar

Reload all built-in connectors.

PULSAR_HOME/bin/pulsar-admin sources reload

Check whether the AMQP1_0 sink connector is available on the list or not.
```
PULSAR_HOME/bin/pulsar-admin sinks available-sinks
```

Create an AMQP1_0 sink connector on a Pulsar cluster using the pulsar-admin sinks create command.

PULSAR_HOME/bin/pulsar-admin sinks create \
--sink-type amqp1_0 \
--sink-config-file amqp-sink-config.yaml \
--name amqp1_0-sink

Use it with Function Mesh

This example demonstrates how to create an AMQP1_0 sink connector through Function Mesh.

Prerequisites

Create and connect to a Kubernetes cluster.
Create a Pulsar cluster in the Kubernetes cluster.
Install the Function Mesh Operator and CRD into the Kubernetes cluster.
Prepare AMQP service.

Step

Define the AMQP1_0 sink connector with a YAML file and save it as sink-sample.yaml.

This example shows how to publish the AMQP1_0 sink connector to Function Mesh with a Docker image.

apiVersion: compute.functionmesh.io/v1alpha1
kind: Sink
metadata:
name: amqp-sink-sample
spec:
image: streamnative/pulsar-io-amqp-1-0:2.9.5.4
className: org.apache.pulsar.ecosystem.io.amqp.AmqpSink
replicas: 1
input:
    topics:
    - persistent://public/default/user-op-queue-topic
    typeClassName: “java.nio.ByteBuffer”
    customSchemaSources:
    “persistent://public/default/user-op-queue-topic”: “org.apache.pulsar.client.impl.schema.ByteBufferSchema”
sinkConfig:
    protocol: "amqp"
    host: "localhost"
    port: "5672"
    username: "guest"
    password: "guest"
    queue: "user-op-queue-pulsar"
pulsar:
    pulsarConfig: "test-pulsar-sink-config"
resources:
    limits:
    cpu: "0.2"
    memory: 1.1G
    requests:
    cpu: "0.1"
    memory: 1G
java:
    jar: connectors/pulsar-io-amqp1_0-2.9.5.4.nar
clusterName: test-pulsar
autoAck: true

Apply the YAML file to create the AMQP1_0 sink connector.

Input

kubectl apply -f  <path-to-sink-sample.yaml>

Output

sink.compute.functionmesh.io/amqp-sink-sample created

Check whether the AMQP1_0 sink connector is created successfully.
Input
```
kubectl get all
```
Output
```
NAME                                READY   STATUS      RESTARTS   AGE
pod/amqp-sink-sample-0               1/1     Running     0          77s
```
After that, you can produce and consume messages using the AMQP1_0 sink connector between Pulsar and AMQP1_0.
